In-house molds with up to a 1,000,000-cycle warranty
Grupo Perplast designs, machines and maintains molds in its own shop. Mold sizes range from 254 to 889 mm (10″ to 35″).
High-performance molds, designed and machined in-house
The Grupo Perplast team is involved in every aspect of the design, using mold-flow simulation software, CNC machining and only top-grade steels.
Mold types
- Side actions by angle pins or hydraulic cylinders
- Hot runner: valve gate, direct, banana gate
- Mixed hot runner
- Collapsible cores / lifters
- Unscrewing molds
- Three-plate cold runner
- Double ejection
Sizes and finishes
From 254 × 254 × 254 mm (10″ × 10″ × 10″, 150 kg) for 80-ton machines, up to 889 × 813 × 813 mm (35″ × 32″ × 32″, 2.5 t) for machines up to 460 tons (Nissei 460).
Finishes: mirror polish, sandblast, EDM texture and grain.
Lead times
*1,000,000-cycle warranty with no maintenance cost when the mold runs in the Grupo Perplast facility.

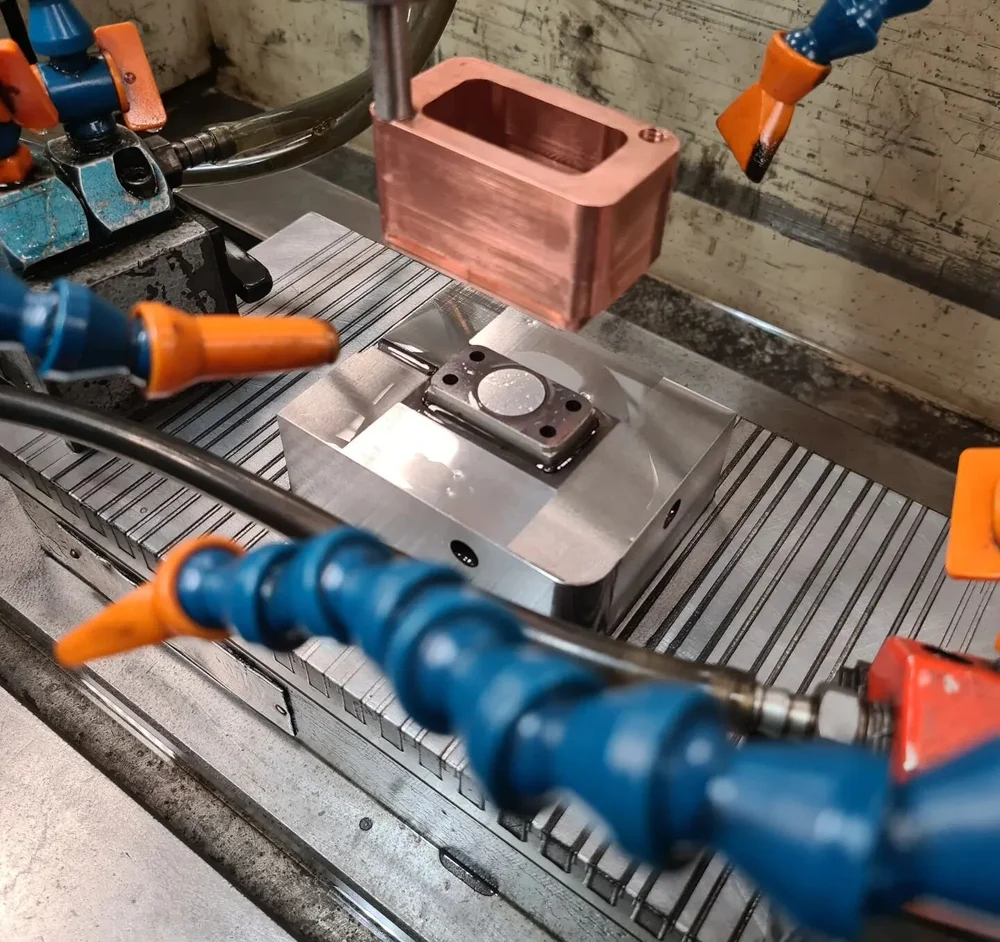

The mold shop
A team of 3 designers and 10 mold technicians designs, builds and maintains the molds.
How a new product is developed
The idea or the part
From scratch or already developed.
Material and feasibility
The resin is specified and the part is reviewed with the mold shop.
Cycles and cavities
Cavities sized to the annual volume.
Quote
For the mold and the molded parts.
Work plan
With the purchase order, a Gantt schedule is issued.
Production
Molding, finishing and delivery with quality control.
Quotes for molds and molded parts
With a 3D model, drawing or physical sample, Grupo Perplast quotes both the mold and the part.
Request a quote
